SALIENT FEATURE:

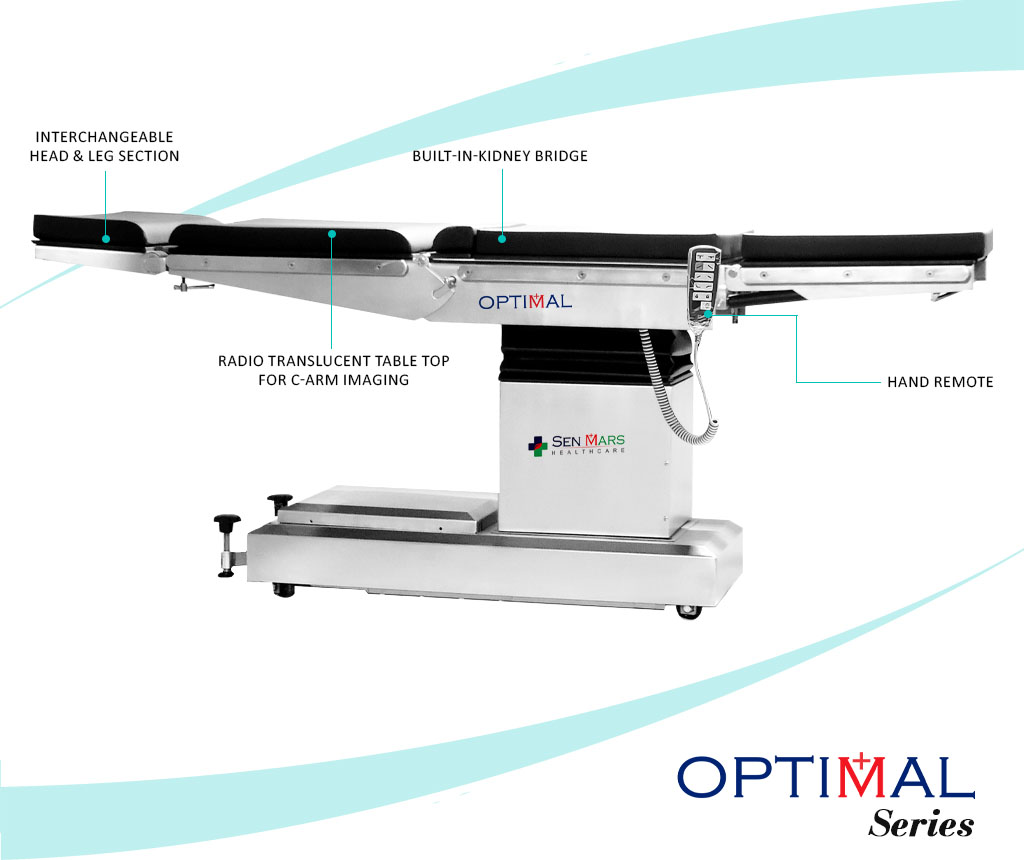

- The eccentrically positioned five-section Radio-Translucent tabletop made of heavy-duty Stainless Steel SS304 Grade without cross members, to optimize image intensifier accessibility for both A/P and Lateral Exposures.
- Operating positions of tabletop i.e. Height adjustment, Back Section, Trendelenberg, Reverse Trendelenberg and Lateral Tilt are quickly and precisely controlled by handheld Remote with symbolic soft-touch buttons also with the help of Foot pedals through selector in case of failure of an electric system.
- Remote-controlled movements are operated by an IMPORTED ELECTRO-HYDRAULIC SYSTEM comprising Hydraulic Motor Pump, Solenoid Valves and Hydraulic Cylinders to assure smooth and quiet movements.
- Interchangeable and detachable Head & Leg sections allow full table length use of image intensifier and use of the table in different surgical procedures.
- Head and Foot section are operated manually.
- Built-in Kidney Elevator – manually operated.
- Large perineal cut-out for drainage.
- A strong and sturdy base incorporating four swivel castors with independent locking system ensures stability and smooth floor movements.
- Easy to clean Stainless Steel SS304 Grade Base and Column cover to minimize infection risk.
- Stainless Steel SS304 Grade Side Rails and Accessories.
TECHNICAL SPECIFICATION:
- table Top Dimension: Width 500 mm (without Side Rails) Length 1960 mm
- Height: Minimum 700 mm to Maximum 1000 mm (Without Mattress)
- Head Section: Up 45 degree, Down 90 degree
- Back Section: Up 75 degree, Down 25 degree
- Leg Section: Down 90 degree
- Trendelenberg/Reverse Trendelenberg: 25/25 degree
- Side Tilt: 18/18 degree
- Patient load capacity : 250kg
STANDARD ACCESSORIES:
- L-shaped Anesthetic Frame: 1 Pc.
- Lateral Support with Pad: 2 Pcs.
- Shoulder Support with Pad: 2 Pcs.
