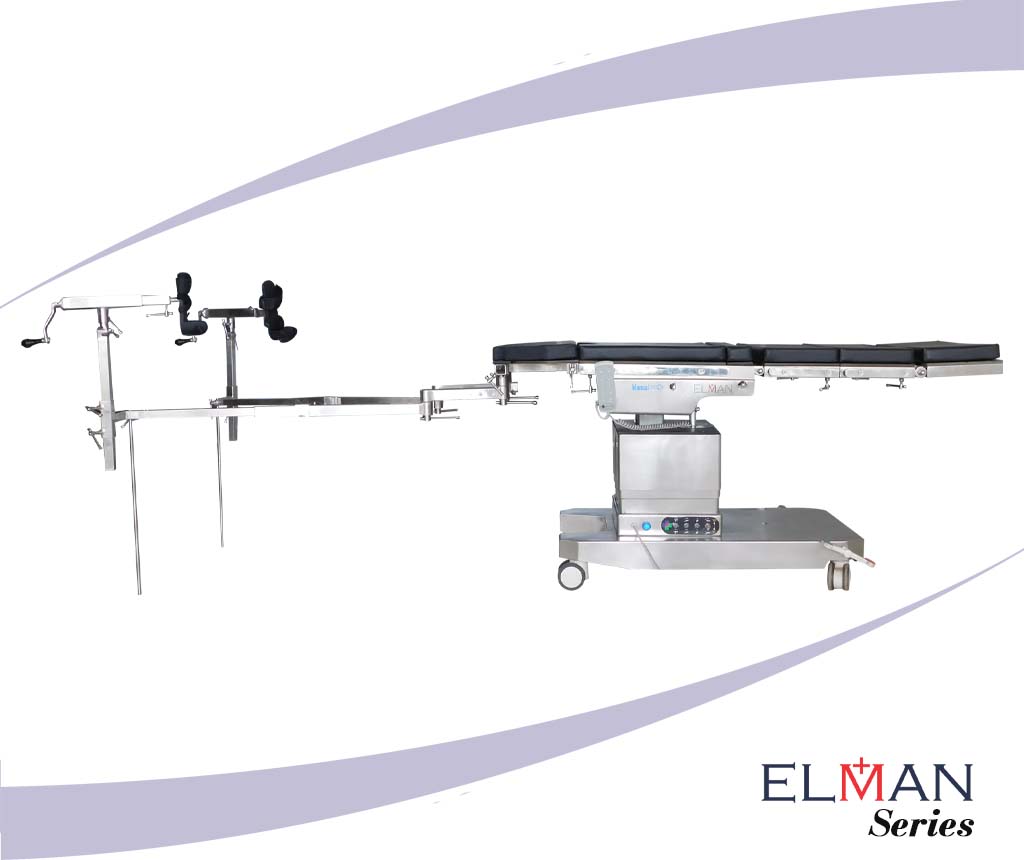

Elman Multi-purpose Electric Operating Table With Override

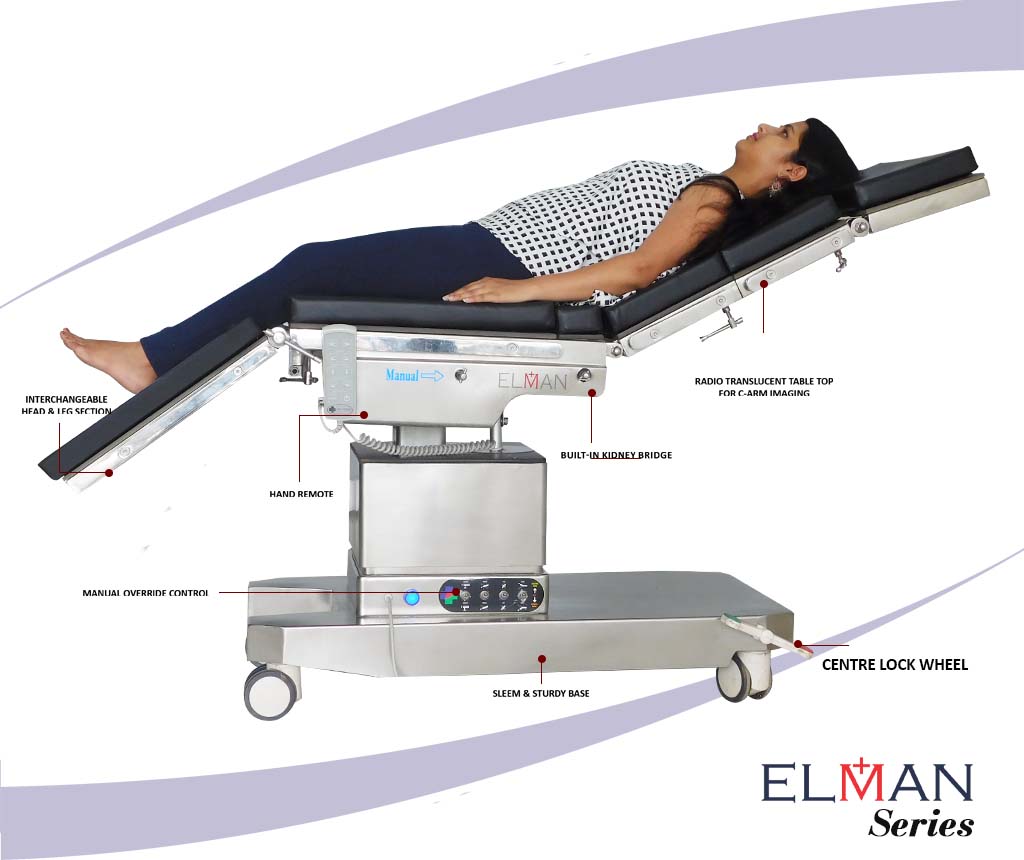

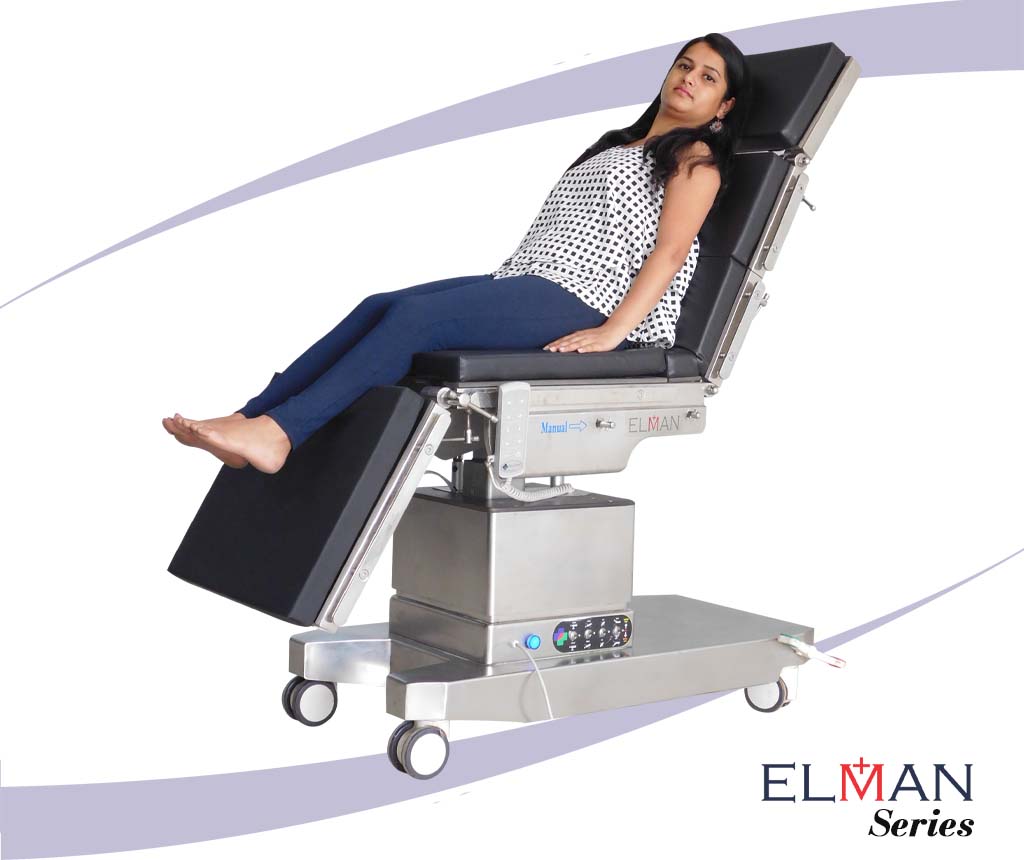

Beach Chair Position

Crm Compatible Table Top

Lithotomy Position

Hand Operating Position

SALIENT FEATURE:

• Five sections eccentrically positioned C-ARM COMPATIBLE RADIO-TRANSLUCENT Table Top without cross members facilitates C-arm imaging.
• The tabletop is made of specially developed radio-translucent material for excellent fluoroscopic capability.
• TABLE FEATURE i.e. High Low, Trendelenburg, Reverse Trendelenburg, Lateral Tilt, Back Section & Sliding Table Top are precisely and smoothly controlled by handheld Remote using IMPORTED LINEAR ACTUATORS.
• A low voltage system is used to ensure the safety of the user
• SMPS based Control Box
• Head and Foot Sections are removable and interchangeable.
• Kidney Position
• Manual Override System: the table is equipped with hand-crank operated
• Manual Override to ensure functionally without any interruption in case of failure power or control systems.
• Non-corrosive SS 304 Grade Stainless Steel base and cylinder covers for easy cleaning and hygiene.

TECHNICAL SPECIFICATION:

• Tabletop length: 1880 mm
• Tabletop width (without side-rails): 550 mm
• Minimum height (without padding): 715 mm
• Maximum height (without padding): 965 mm
• Trendelenburg / Reverse Trendelenburg: 20°/20°
• Lateral Tilt (Left/Right): 20°/20°
• Back Section adjustment: +80° / -20°
• Head Section adjustment: +40° / -90°
• Leg Section adjustment: +15° / -90°
• Load capacity: 200 Kgs
• Drives: Linear Actuators
• Power supply: 220V AC – 50Hz

STANDARD ACCESSORIES:

• ‘L’ shaped Anaesthetic Screen: One pc
• Padded Shoulder Support: One pair
• Padded Lateral Support: One pair
• Radio-translucent Armboard with pad: Two pcs
• Goepel Knee Crutch with straps: One pair
• Foot Rest: One pair
• PU Foam Mattress – 50mm: One set

• Patient Body Strap: Two pcs

Certifications:
